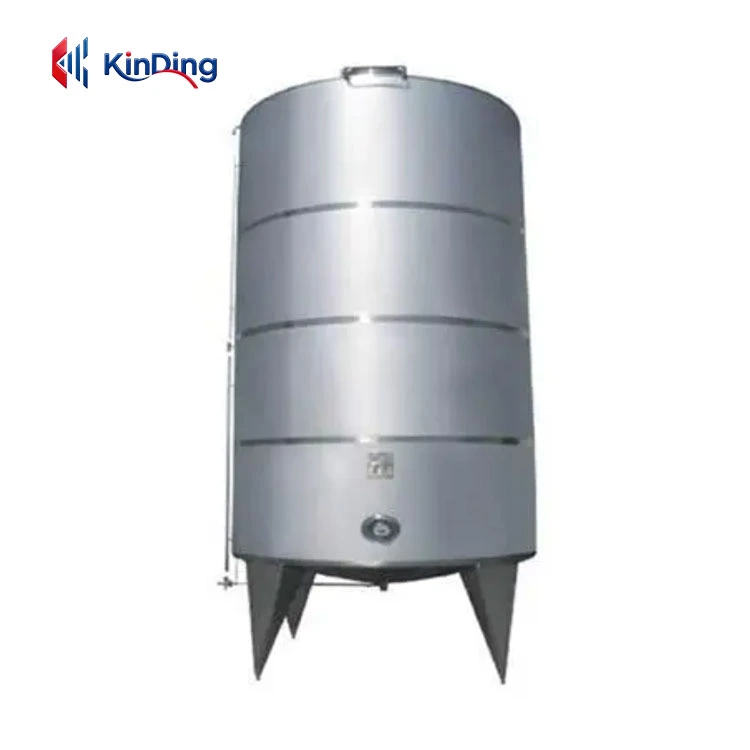

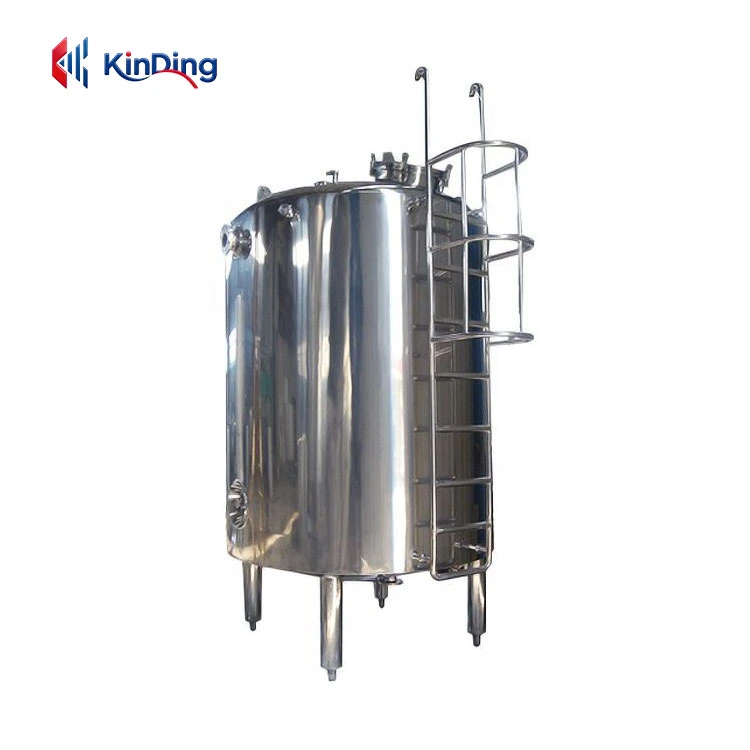

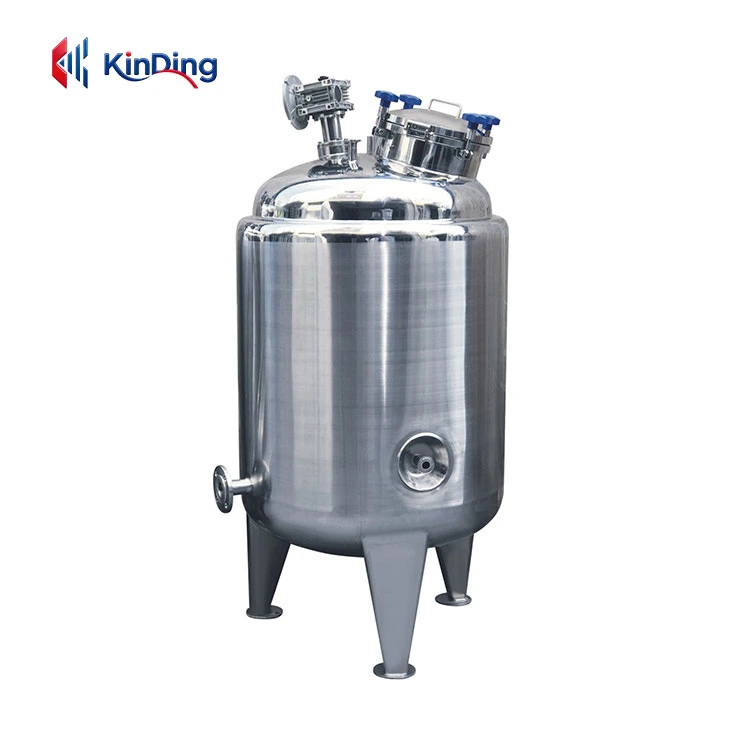

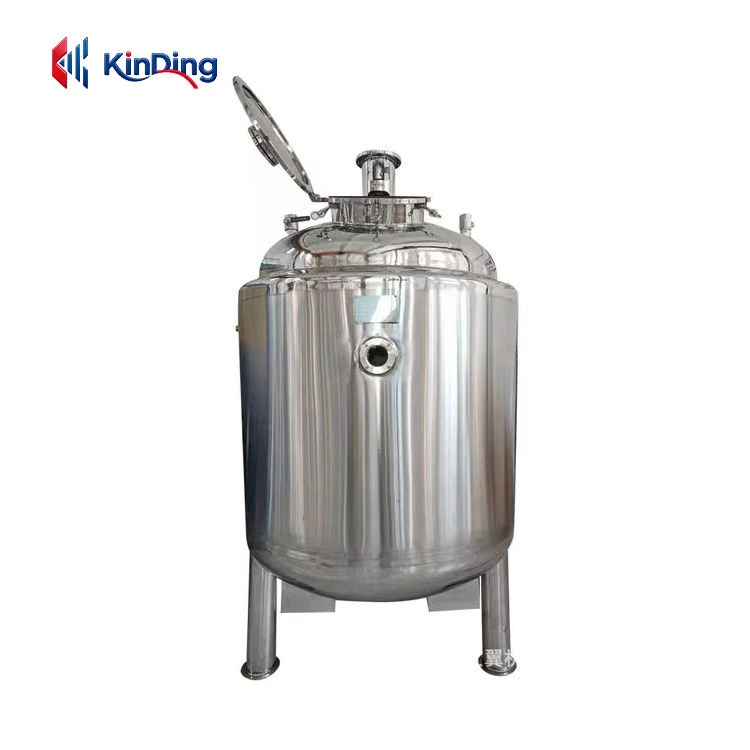

Heated Storage Tank

In industries such as chemical engineering, food, and pharmaceuticals, the storage temperature of materials directly affects their quality, activity, and fluidity. The core pain points of customers lie in product deterioration caused by temperature fluctuations, excessive energy consumption, uneven heating, or equipment corrosion. The Heated Storage Tank of Kinding Machinery was precisely designed to solve these problems. Our storage tanks adopt jacketed or coil-type high-efficiency heating designs, combined with high-quality insulation layers, to achieve uniform and stable heat distribution, with temperature difference control accuracy reaching ±1°C.

Features of the Kinding heating storage tank

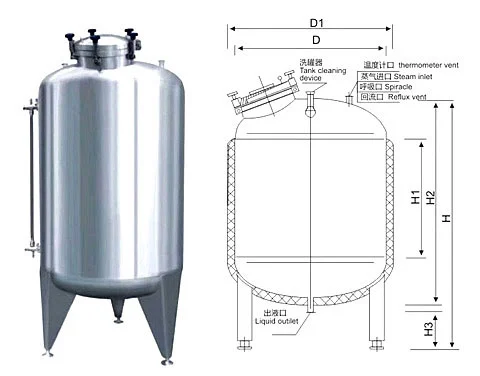

Heating system: Steam, heat transfer oil or thermocouple heating methods can be configured according to customer requirements. The jacket can be designed as a half-tube or fully enclosed type to maximize the heat transfer area. Intelligent temperature control: An Optional PLC automatic control system is available to achieve real-time temperature display, over-temperature alarm and automatic start and stop.Structural reinforcement: The tank top can be designed as a flat top or a disc-shaped head, and is equipped with standard or custom interfaces such as manholes, sight glasses, cleaning balls, breather and explosion-proof devices.Basic parameter range: Capacity from 50 liters to 50,000 liters; Operating temperature range: -20°C to 300°C; The design pressure is customized according to the medium and heating method.

Usage Guidance for Kinding Heating Storage Tank

Usage instructions: During operation, please set a reasonable heating gradient to avoid thermal shock to the tank and materials. Regularly check the integrity of the insulation layer and the accuracy of the temperature control instruments. We encourage potential customers to provide detailed process conditions when inquiring about prices so that we can recommend the best configuration.
