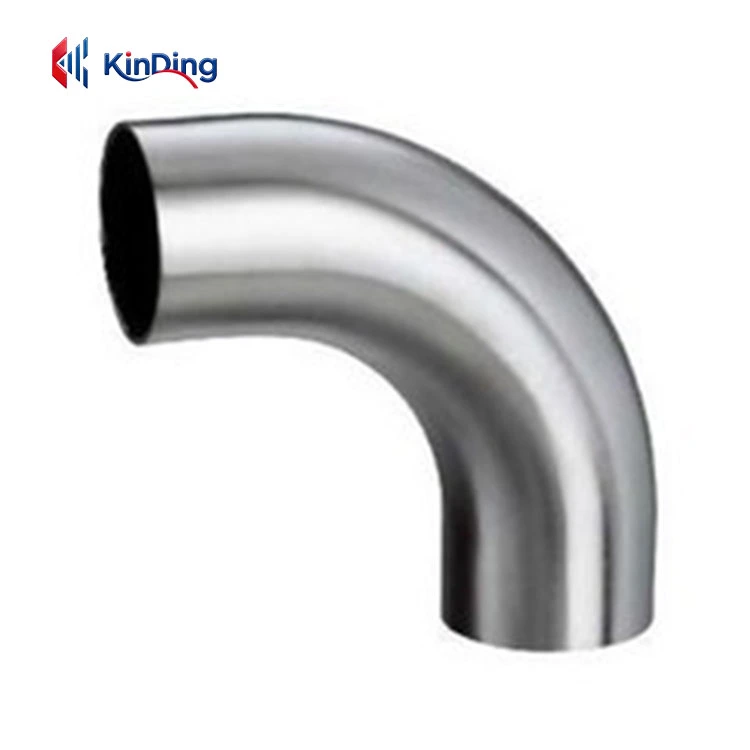

Sanitary Elbow

Sanitary Elbow is a key pipe fitting used in sanitary piping systems to change the flow direction of the medium. The products cover various angle specifications such as 45 degrees, 90 degrees, and 180 degrees. The connection methods include clamp quick-installation, welding, threaded and flange forms, and are suitable for different pipeline layout requirements. Kinding Sanitary Elbow is cold-formed from seamless steel pipes or precision-welded pipes, without any dead corners or exposed threads, eliminating the possibility of medium residue and bacterial growth. It can easily achieve online cleaning (CIP) and online sterilization (SIP).

Whether it is the material transportation on the dairy production line, the distribution of injection water in the pharmaceutical workshop, or the pipeline redirection during the beer brewing process, Kinding Sanitary Elbow can provide safe, reliable and easy-to-maintain connection solutions. Choosing Kinding for Sanitary Elbow procurement means choosing a rigorous attitude of safeguarding the purity of fluids at every detail.

Why are sanitary elbows so important?

In a sanitary piping system, although the elbow may seem simple, it performs three crucial functions: changing the flow direction, maintaining cleanliness, and ensuring flow rate. If the inner wall of the elbow is rough, the weld is uneven, or there are structural dead corners, it can lead to residue of the medium, make cleaning difficult, or even cause microbial growth, batch contamination, and quality accidents. A single unqualified sanitary elbow can render the entire production line investment worthless. Therefore, choosing a professional and reliable manufacturer of sanitary elbows is a crucial aspect that every responsible engineering manager must pay attention to.

Core advantages of Kinding Sanitary Elbow

1. Selective material selection, ensuring source quality

Every Sanitary Elbow manufactured by Kinding uses 304 or 316L stainless steel plates and pipes produced by renowned steel mills. The incoming materials undergo 100% material re-inspection using a spectrometer to ensure that key alloy elements such as nickel, chromium, and molybdenum meet international standards.

2. Precise polishing, no dead corners of cleanliness

The inner walls of Kinding Sanitary Elbow are polished using a multi-stage mechanical polishing process, from rough grinding to fine polishing, gradually eliminating processing marks and ultimately achieving a mirror-like surface with Ra ≤ 0.4 μm. This surface quality is far lower than the roughness threshold required for microbial attachment, preventing bacteria, proteins, etc. from adhering and growing on the pipe wall. At the same time, the ends of the elbow are processed with standard sanitary-grade end caps, without any threads or grooves exposed in the flow path, completely eliminating potential hygiene dead corners and ensuring that CIP cleaning fluid can flow unhindered over every inch of the inner surface.

3. Precise angles, convenient installation

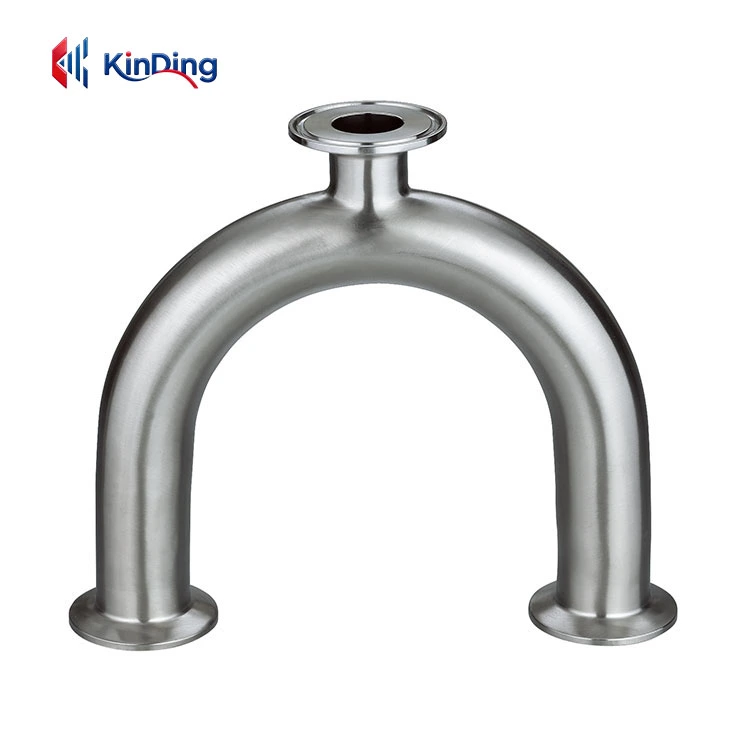

Kinding Sanitary Elbow offers various standard angles such as 45 degrees, 90 degrees, and 180 degrees (U-shaped elbow), and can be customized to any angle according to customer requirements. The product is formed using a CNC bending machine or precision molds, with an angle deviation controlled within ±0.5 degrees, ensuring precise alignment of the pipeline during on-site installation and reducing welding stress and assembly errors. The fast-installation type with clamp fastening uses standard ISO 2852 or 3A quick-connect interfaces, seamlessly connecting with various sanitary-level valves, pump bodies, and storage tanks, significantly shortening the installation period.

4. Multiple connection methods, flexible adaptation

Kinding fully understands the differentiated connection requirements of different application scenarios, therefore Sanitary Elbow offers the following multiple options:

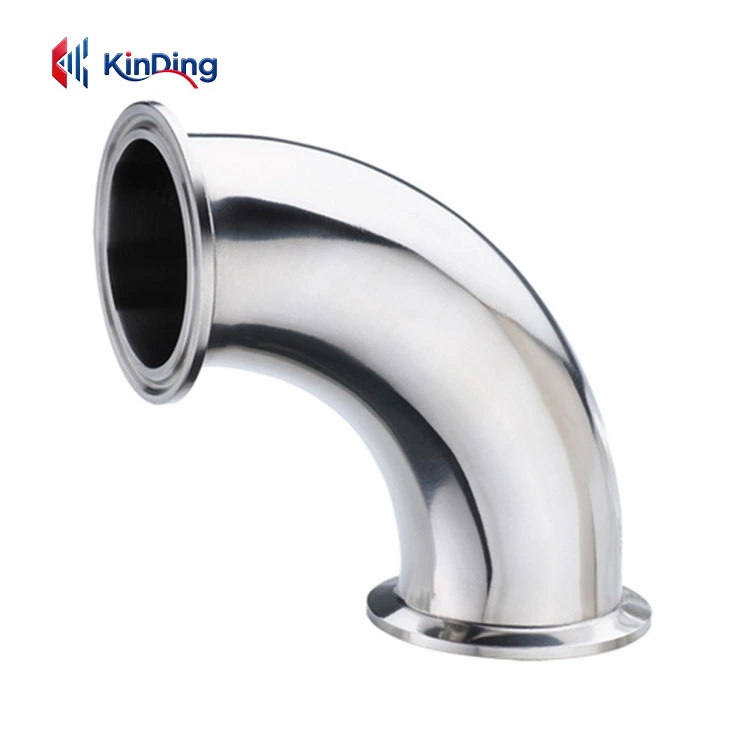

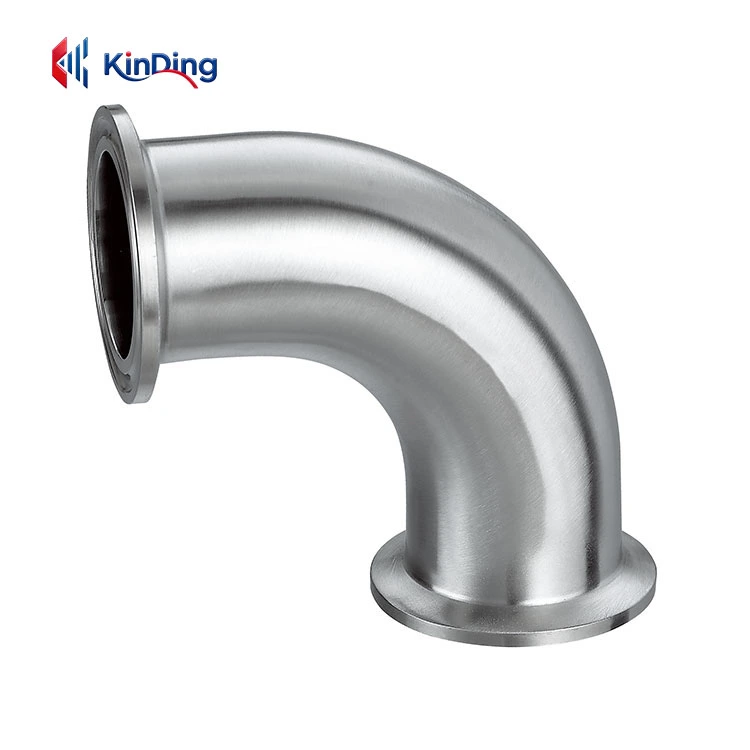

1) Fast-installation type with clamp: Easy to disassemble, suitable for production lines that require frequent cleaning or replacement.

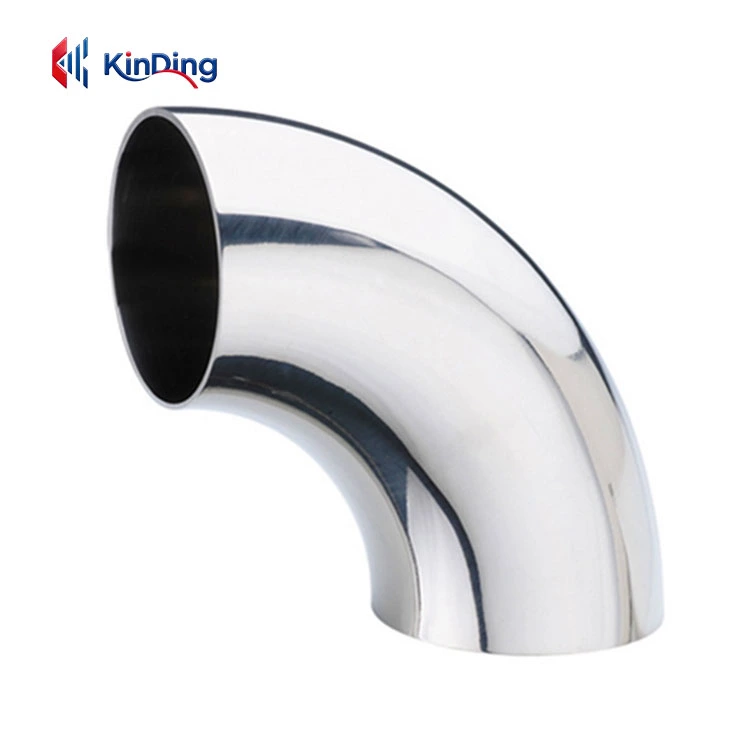

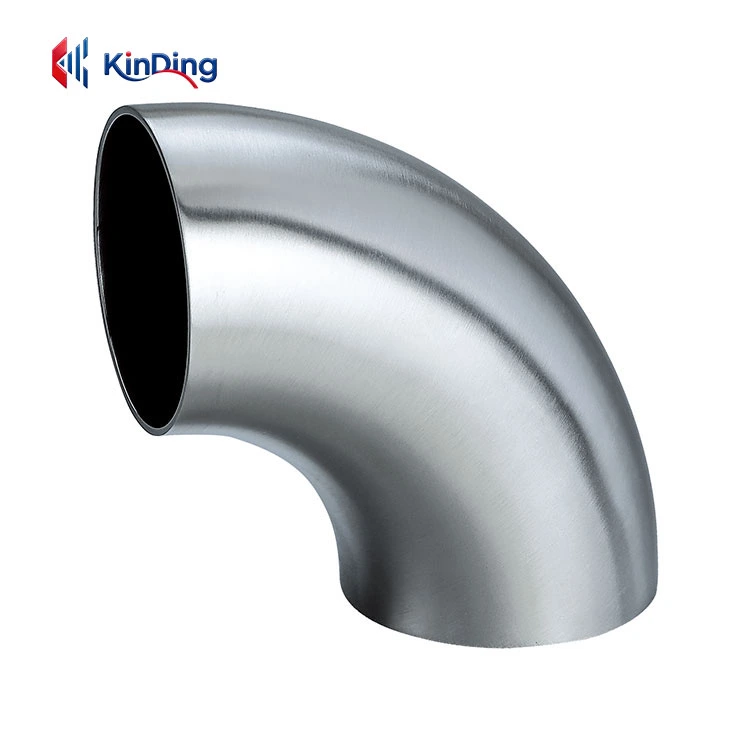

2) Welding type: Permanent connection, without seals, suitable for extremely high aseptic level conditions.

3) Threaded type: Suitable for small-diameter pipelines or temporary connections.

4) Flange type: Suitable for large-diameter pipelines or scenarios where it is necessary to connect with standard industrial equipment.

When you purchase Sanitary Elbow, Kinding's professional engineers will, based on your pipeline pressure, temperature, cleaning frequency and other parameters, recommend the most suitable connection method and material specifications for you.

Why choose Kinding for the procurement of Sanitary Elbows?

As a professional manufacturer integrating the production of stainless steel tanks and sanitary-level pump valve fittings, Kinding has a deeper understanding of sanitary piping systems than ordinary pipe fittings processing enterprises. From material procurement, processing and shaping to surface treatment and factory inspection, we adhere to the standards of manufacturing core equipment when manufacturing each Sanitary Elbow.

Kinding has a complete production chain and sufficient in-stock. Standard-sized Sanitary Elbows can be delivered on the same day, and the delivery cycle for non-standard customized products is also much shorter than the industry average. We provide a full-process service from selection guidance, technical consultation to after-sales support to ensure your Sanitary Elbow procurement experience is worry-free, reliable and peaceful.

Consult immediately and obtain professional solutions!

Whether you are building a new clean production line or need to upgrade and renovate the existing pipelines, Kinding's Sanitary Elbow will be your reliable choice. Our engineering team will provide you with the optimal elbow selection plan and supporting suggestions based on your medium characteristics, working pressure, temperature range and cleanliness level.
