Tilting Steam Heating Jacketed Kettle

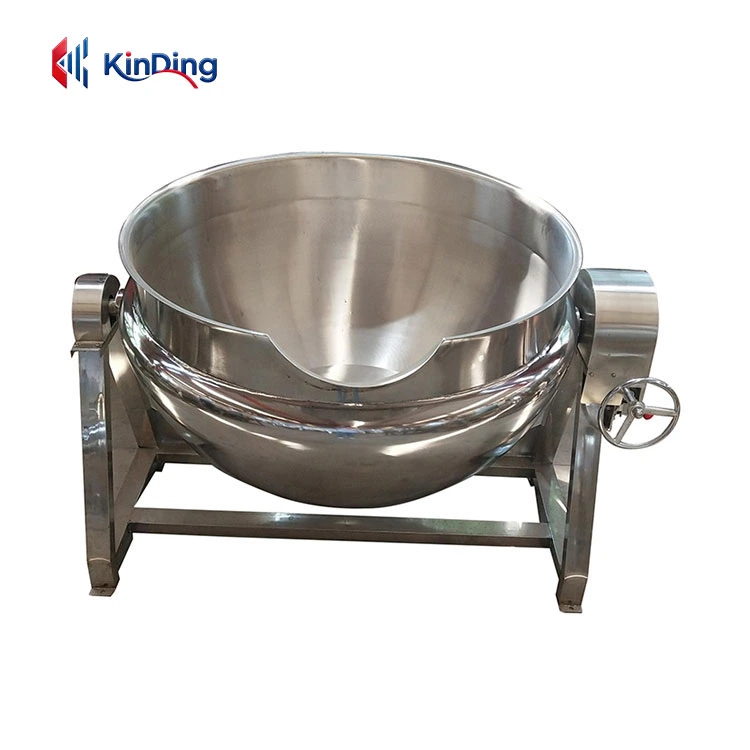

The tilting insulated double-layer cooking pot has the characteristics of short boiling time for liquid materials and easy control of heating temperature. The Tilting Steam Heating Jacketed Kettle consists of a pot body and a tilting frame, forming a double-layer spherical structure. This equipment offers various volume models ranging from 50L to 1000L, with a diameter range of Φ600 - Φ1400mm.

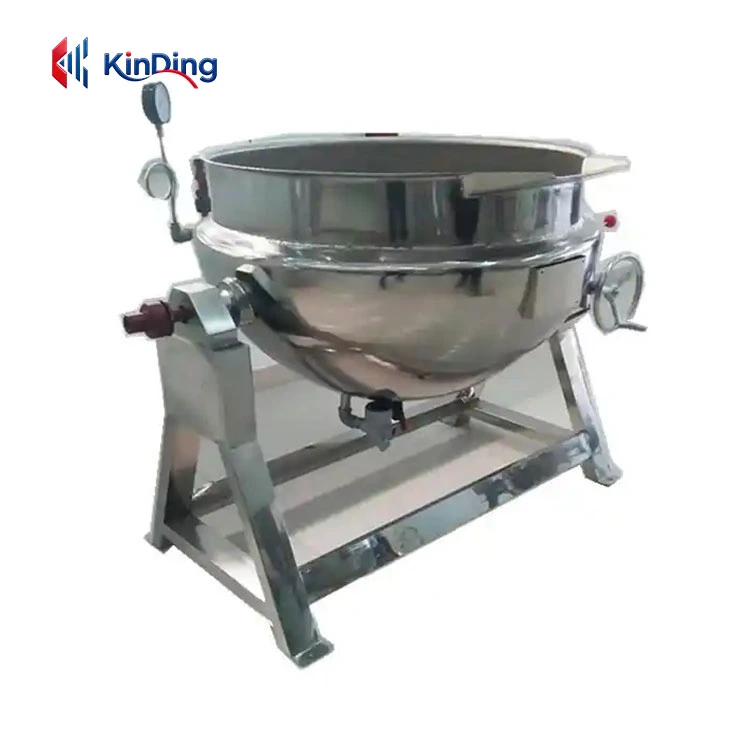

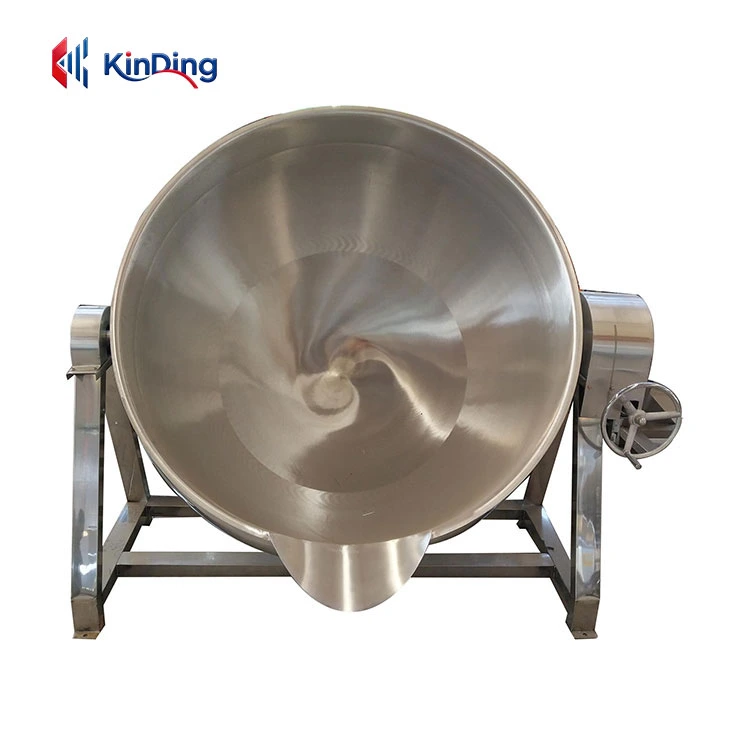

It is equipped with a pressure gauge, safety valve, and an electric control box, and is equipped with an automatic temperature control system. The Tilting Steam Heating Jacketed Kettle supports customized parameter adjustments. The working pressure range is ≤ 0.09MPa, the stirring speed is 36r/min, and the material discharge is completed by controlling the tilting device through a handwheel.

To meet the individualized needs of customers, Kinding offers a variety of customized configuration options. For special material properties, a scraper-type mixing system can be installed to prevent wall sticking; for processes requiring insulation, a double-layer jacketed insulation structure can be selected; for complex processes, multiple steam inlets and zone temperature control designs can be chosen.
